Dug Outs

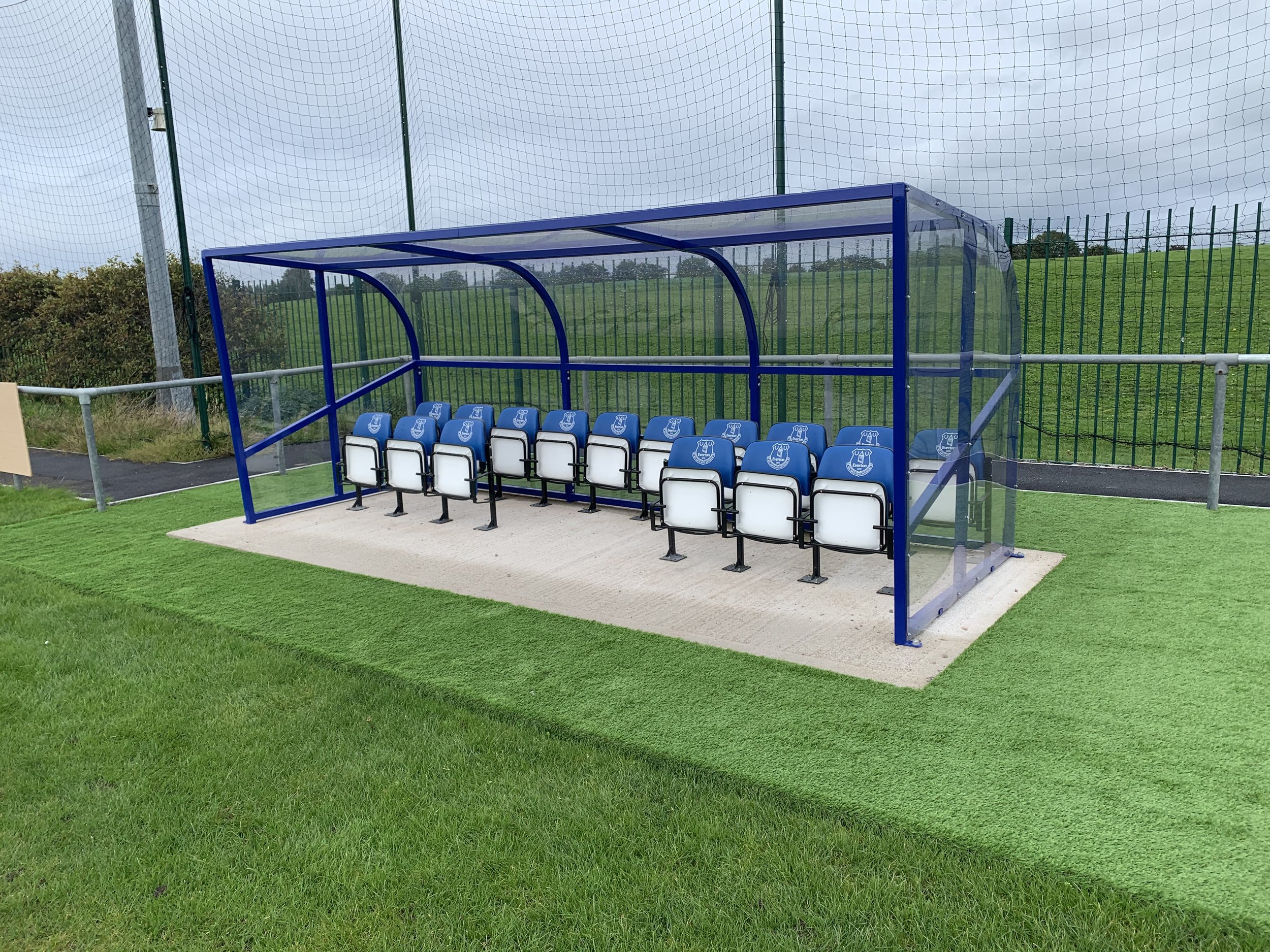

Our dug outs / team shelters accommodate 8, 12 or 16 people. These 60mm aluminium frames structures have Zinc primed 6mm acrylic infills to provide greater strength than similar products in the market, so you are not forever replacing cracked infills. They come with half bucket seats onto a wooden bench, tip seating fixed to the floor inside the structure or the same but with upholstered seats as pictured. There are also the following options available: -
We can fit astroturf to the front of the dug outs to protect the ground in front
Wheels are available for the rear of the structures if you need to move these around – like at a 3G complex
A 4th official area can be included which will be an additional 2m wide with 2 seats
An upgrade to 10mm thick Zinc primed Acrylic is available
These structures are assembled on-site so there are no access concerns for us to worry about
In some instances we can also lay a concrete base for both structures if you do not have a local civils contact
The Seats
460mm centered Tip Seating. Washers available to extend the width to 500mm that adds 0.56m to the length of a 50 seat stand and additional cost
Steel legs will either fit to the floor in front of the seat (Tread) or to the row behind (Riser). Tread plate dimensions are 150mm x 120mm x 6mm and there are 5 x 12mm diameter holes for fixing to the floor, though only 1 or 2 of these will be used/required. The Riser supports are 30mm square steel with 2 x10mm or 12mm holes for securing on each leg
The ring under the plastic seating is 19mm x 1.5mm thick tube
The clearway from the edge of the seat to the seat in front is 330mm. The seat height when lowered is 400mm from the ground
Minimum order by colour is 50 seats unless held in stock. Seats are injection moulded with maximum resistance to UV fading
All Steels for the legs are hot dip Galvanised, with powder coating available at additional cost.
